Spindle Drawbar Force Gages

Call Toll Free 1-866-THE GAGE (843-4243)



Truly the best, most economical tool for spindle drawbar force testing!





Call Clamprite Today!               Use your

Clamprite Gage Kits provide an easy, accurate, and economical method of checking the drawbar force of your machine.

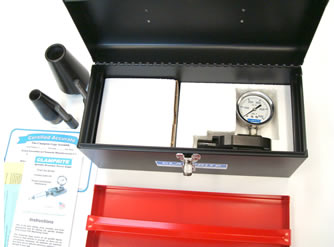

Kits are furnished in a foam fitted, heavy-gauge metal tool box (with accessory tray) and include the gage head, a spindle adapter, and an internal transfer screw coupling that accepts all pull studs.

The universal gage head adapts to every size and type of spindle, including CAT, BT, ISO, HSK, CAPTO, KV, KM, VM, NC5 and others.

Select your kit by spindle type and maximum drawbar force you will be testing. Order additional adapters as required.

Drawbar tension is commonly 1800 to 2500 Pounds of Force for 40 taper spindles, 3600 to 4800 for most 50 taper spindles, and higher for heavy duty machines or larger spindle tapers. Drawbar force varies considerable from machine to machine. Check the owner's manual for your machine.

Does your manual give the drawbar force in kilograms (kg) or kilo-newtons (KN)? Click here for the conversion chart.

Determine the maximum force for your machine and the tapers you need then order the kit that suits your needs.

For example, if you only have CAT 40 machines, you would order the CG3K40C kit which will test all CAT 40 machines using your retention knob for the machine being tested. If you also have BT 40 machines you would add the BT 40 adapter sold separately. (Note: most CAT & BT 40 drawbars have a force under 3,000 lbs. If your machine specifies a higher force you would order the 5,000 lb gage kit with the adapters you need.)

If you have both CAT 40 and CAT 50 machines you would want the CG5K40/50C gage kit. Add any additional adapters as required.


Call 1-866 THE GAGE for technical assistance.

                                Clamprite Gage Kits


Part #
Lbs Max
Description
Price
  CG3K30B
3,000
Includes BT 30 taper adapter
$819.00
  CG3K40B
3,000
Includes BT 40 taper adapter
$829.00
  CG3K40C
3,000
Includes CAT 40 taper adapter
$829.00
  CG5K40B
5,000
Includes BT 40 taper adapter
$829.00
  CG5K40C
5,000
Includes CAT 40 taper adapter
$829.00
  CG5K50B
5,000
Includes BT 50 taper adapter
$849.00
  CG5K50C
5,000
Includes CAT 50 taper adapter
$849.00
  CG5K40/50C
5,000
Includes CAT 40 & CAT 50 adapters
$989.00
  CG5K40/50B
5,000
Includes BT 40 & BT 50 adapters
$989.00
  CG10K50B
10,000
Includes BT 50 taper adapter
$885.00
  CG10K50C
10,000
Includes CAT 50 taper adapter
$885.00



                               Clamprite Spindle Adapters




Part #
Description
Price


CA30B
BT 30 Spindle Adapter
$139.00


CA35B
BT 35 Spindle Adapter
$142.00


CA40B
BT 40 Spindle Adapter
$149.00


CA40C
CAT 40 Spindle Adapter
$149.00


CA45B
BT 45 Spindle Adapter
$159.00


CA45C
CAT 45 Spindle Adapter
$159.00


CA50B
BT 50 Spindle Adapter
$169.00


CA50C
CAT 50 Spindle Adapter
$169.00


CA60C
CAT 60 Spindle Adapter
$439.00


CAPTO 03
CAPTO 3 Spindle Adapter
$435.00


CAPTO 04
CAPTO 4 Spindle Adapter
$459.00


CAPTO 05
CAPTO 5 Spindle Adapter
$489.00


CAPTO 06
CAPTO 6 Spindle Adapter
$595.00


CAPTO 08
CAPTO 8 Spindle Adapter
$789.00


KV 4540
KV 4540 Spindle Adapter
$639.00


KV 5045
KV 5045 Spindle Adapter
$719.00


KM 63
KM 63 Spindle Adapter
$829.00


NC5-63
NC5-63 Spindle Adapter
$629.00






                               Clamprite HSK Spindle Adapters

HSK spindles must maintain factory specified drawbar force to properly seat the arbors. Test HSK spindles frequently!

Our product sheet only shows the E and A size adapters. Call for information if you have the F or other size adapter and we will tell you which of our part numbers corresponds to your adapter. For example, the HSK F size spindle can be tested with the next size larger adapter in type A configuration. Most of Clamprite's spindle adapters are listed in the type A configuration.

If you have already purchased a gage kit with the universal gage head you can simply add the HSK adapters you need. If you only have HSK spindles you will need to order the appropriate gage head as shown below.

HSK spindle data can be confusing. If you want to end the confusion and learn the whole story, order our HSK Handbook.




Part #
Description
Price

  CHSK E25 Size E-25 Adapter
$399.00

  CHSK E32 Size E-32 Adapter
$419.00

  CHSK A40 Size A-40 Adapter
$439.00

  CHSK A50 Size A-50 Adapter
$469.00

  CHSK A63 Size A-63 Adapter
$489.00

  CHSK A80 Size A-80 Adapter
$679.00

  CHSK A100 Size A-100 Adapter
$849.00

  CHSK A125 Size A-125 Adapter
$989.00






     Clamprite Gage Head only for HSK Adapters


  CG5K Gage Head for HSK E-25 to A-63 Adapter & Others
$679.00

  CG10K Gage Head for HSK A-80 to A-100 Adapter & Others
$719.00

  CG15K Gage Head for HSK A-125 Adapter & Others
$949.00





HSK Handbook  159 pages Fully Illustrated in Color and includes a blueprint of each HSK size and type of spindle and arbor. Please read #3 of the Frequently Asked Questions (FAQs). Normal retail price $200.00.

Purchase a Clamprite Gage and add this book for only $149.00
